Koso Gate Valves.

Parallel slide has KOSO's own design/construction to realize very good and firm metal-to-metal touch sealing performance.
Its execellent shut-off performance, brought about by the metal-to-metal sealing, makes it suitable to a variety of severe services, including emergency shut-off/opening at extremely low to high temperature.




FEATURES:

Body class
150/300 600 900/1500 2500
Body size
1 1/2"(40A) to 54"(1350A) 1 1/2"(40A) to 24"(600A) 3"(80A) to 16"(400A) 3"(80A) to 16"(400A)
Body rating
ANSI Class 150/300
JIS 10K to 30K
ANSI Class 600
JIS 40K
ANSI Class 900/1500
JIS 63K
ANSI Class 2500
Fluid temperature
-196 to +538°
Connections
Flanged (RF, RTJ), Butt Weld, Socket Weld
Body materials
SCPH2/WCB, SCPH21/WC6, SCPL1/LCB, SCS13A/CF8, SCS14A/CF8M etc.
Disc materials
A105/Stellited, SCM435/Stellited, SUS304/Stellited, SUS316/Stellited
Seat materials
Rangeability
Standard type/15:1 to 20:1 V-Orifice type/20:1 to 30:1
Flow characteristics
Approximate Linear
Seat Leakage
Rated Cv × 0.000001% ANSI Class V
Actuator combination
5200LA: Pneumatic Diaphragm Actuator

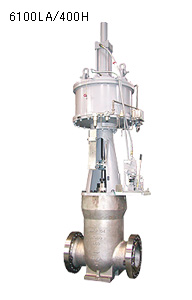

6100LA: Pneumatic Cylinder Actuator
Electric Motor Actuator(Limitorque, Rotork, Seibu, etc.)

  *Source from www.koso.com
